The MultiSafe TT 3 is a telescopic voltage tester for fast voltage testing on overhead railway lines and outdoor switchgear. Its quick and easy-to-use telescope system makes work easier and saves time.

Fully automatic measuring sequences and only one button eliminate operating errors. Its integrated self-test enables the quick functional testing of the device on site without further aids. With different sizes and ground connections, we offer the ideal test device for every application.

Its 360° visual display system, complemented by LCD display and audible warning, guarantee good perception in all environments.The sealed protective resistors reduce the high voltage to a harmless level. We guarantee the highest safety through surge voltage tests > 100 kV and the unique TST saftey module with continuous redundant monitoring.

*  precise display of the voltage 50 V – 3 000 V AC / DC

*  response voltage Ut 400 V (other response voltages from 50 V on request)

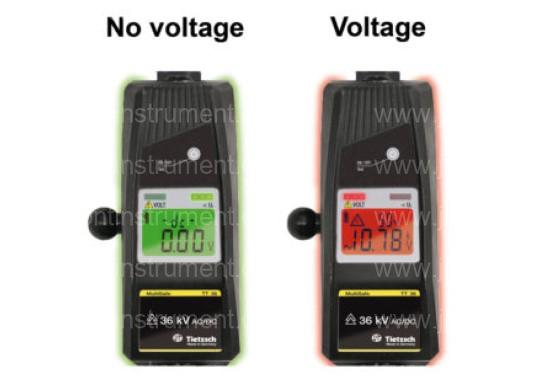

*  large two-color illuminated display (red / green), for a clear warning of dangerous voltages

*  clear LED indicator for dangerous voltage

*  360° illuminated band lights up (red / green) in all directions

*  acoustic warning of dangerous voltage

*  integrated self-test for quick checking of the protective resistors, connecting cable, display and electronics

*  surge voltage strength >100 kV

*  highest degree of safety provided by molded protective resistors

*  telescope system for easy and quick testing

*  variable test height up to approx. 10 meters

*  for indoor and outdoor use

*  various test electrodes for testing contact wires, overhead lines and busbars

*  easy operation with just one button

*  robust housing

*  IP 65 – waterproof
